Card Access

Modified on Tue, 23 Jul, 2024 at 3:19 PM

Step 1: double click on the desktop icon “Axis Camera Station Client” example below if pinned in taskbar same icon no text.

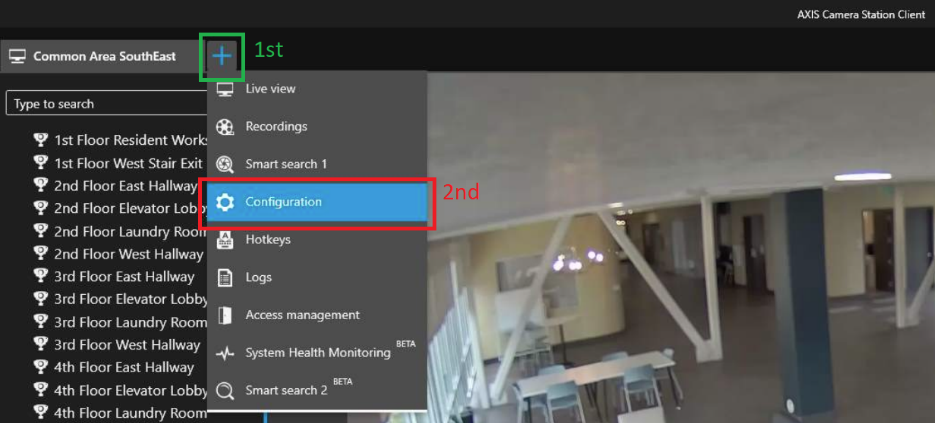

Step 2: 1st click on blue plus sign outlined in green below. 2nd click on configuration outline in red below.

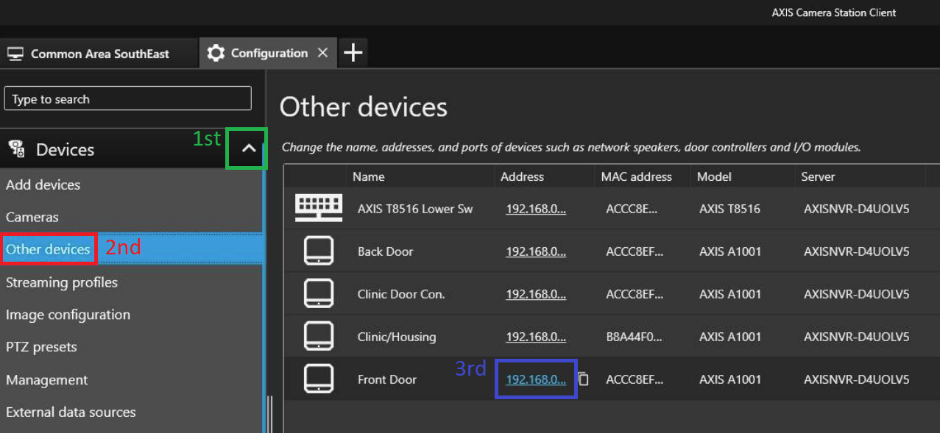

Step 3: 1st click on the down arrow outlined in green below. 2nd click on other devices outlined in red below. 3rd click on the IP address of desired door outlined in blue below.

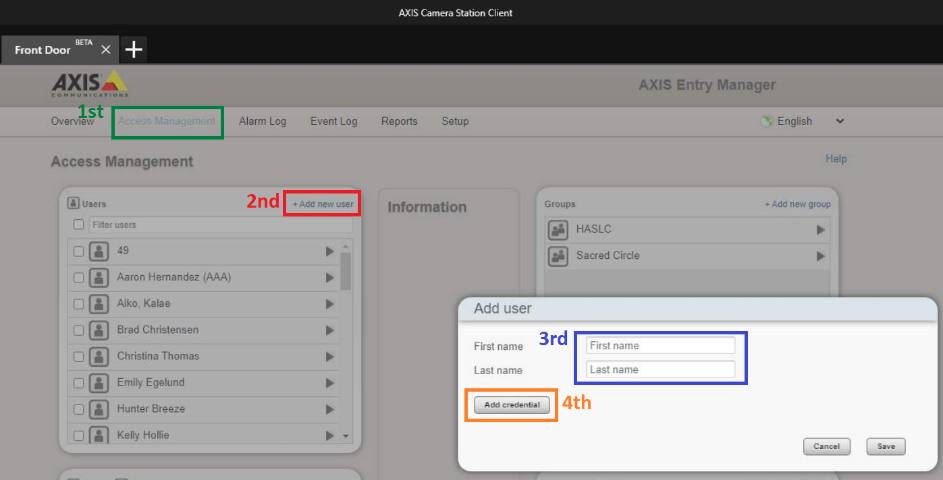

Step 4: 1st click access management outlined in green below. 2nd select + Add new user outlined in red below. 3rd enter first and last name outlined in blue below. 4th select add credential outlined in orange below.

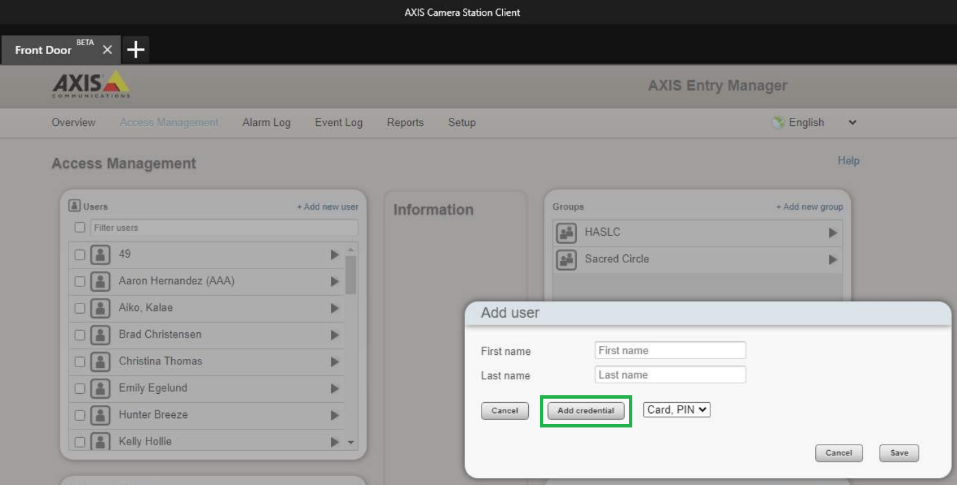

Step 5: Click add credential outlined in green below.

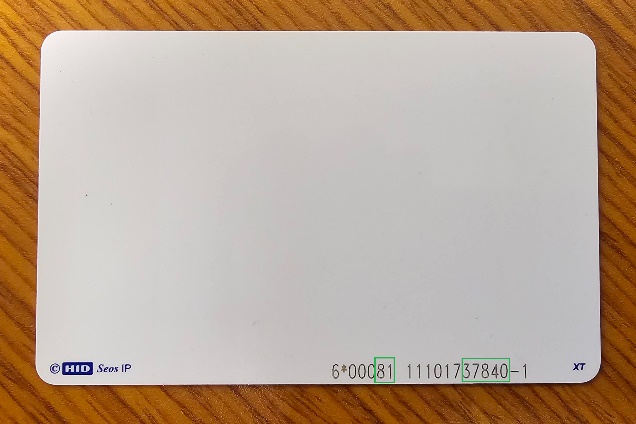

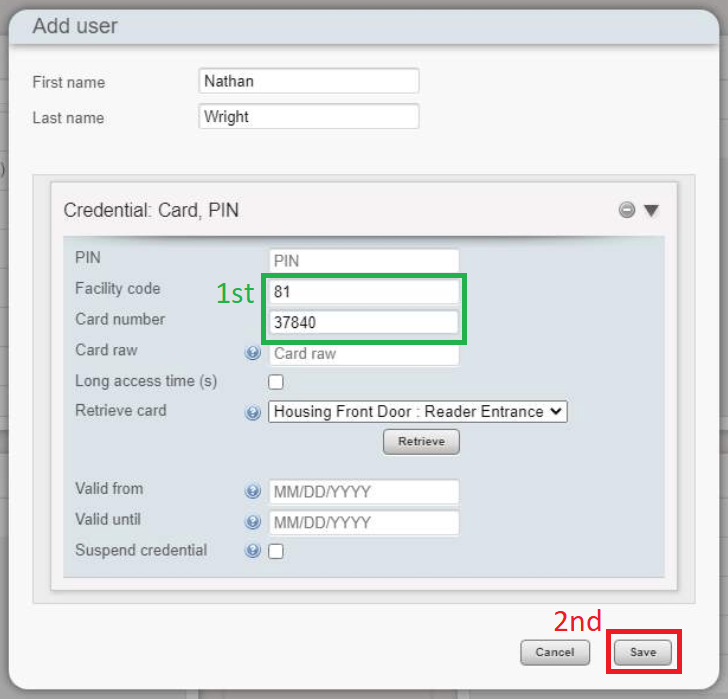

Step 6: 1st Type facility code and card number from the access card location outlined in green below. 2nd click save outlined in red below.



Step 7: Click and drag user to the correct group example in green below.
